HTTP Node

The HTTP Node allows a workflow to make an arbitrary HTTP request and optionally place the response on the current payload.

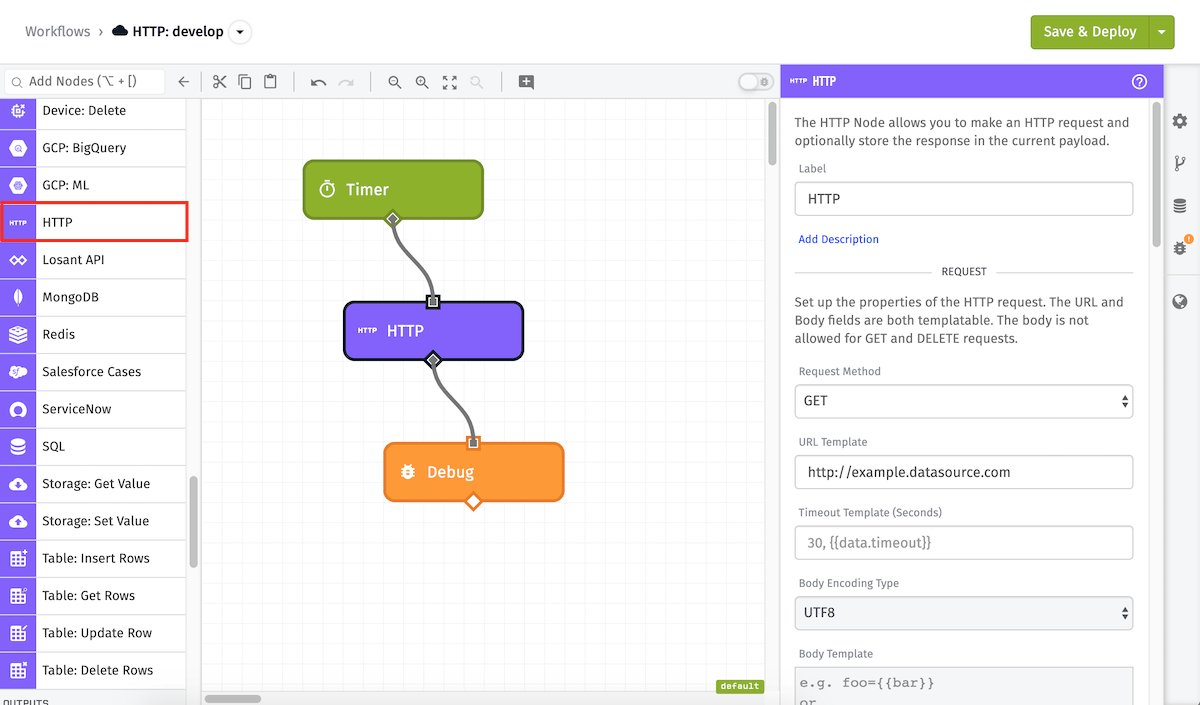

HTTP Node

Node Properties

The HTTP Node can be configured with all the common properties of an HTTP request - request method, request URL, request body, and request headers. In addition, the node can optionally store the response of the request at a spot in the payload.

Request Configuration

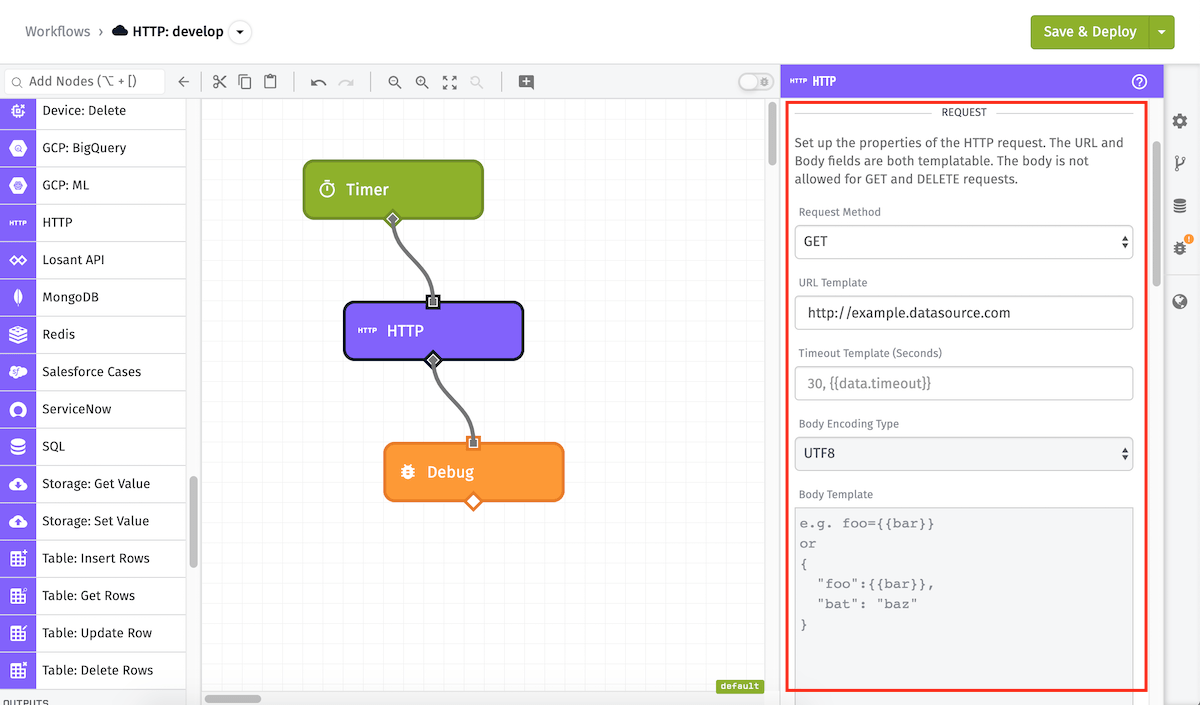

HTTP Node Basic Configuration

HTTP Request Configuration contains five fields:

  • Request Method (Required): The selected method of the HTTP request, available methods are “GET”, “POST”, “PUT”, “PATCH”, and “DELETE”.
  • URL Template (Required): The URL to make the request at - this field supports static URLs or string templates.
  • Timeout Template (Required): A string template or integer for the numbers of seconds to wait before a timeout will occur. The maximum and default timeout is 30 seconds.
  • Body Template: Available for PATCH, POST, and PUT requests, the body is optional and supports standard JSON templates.
  • Body Encoding Type: (Edge Agent Version 1.9.0 and higher) Optionally, you can specify the request body encoding type. By default, the encoding type will be UTF8.

In the above example, the node is making a GET request to the URL http://example.datasource.com, thus Body Template and Encoding Type are unavailable.

Header Configuration

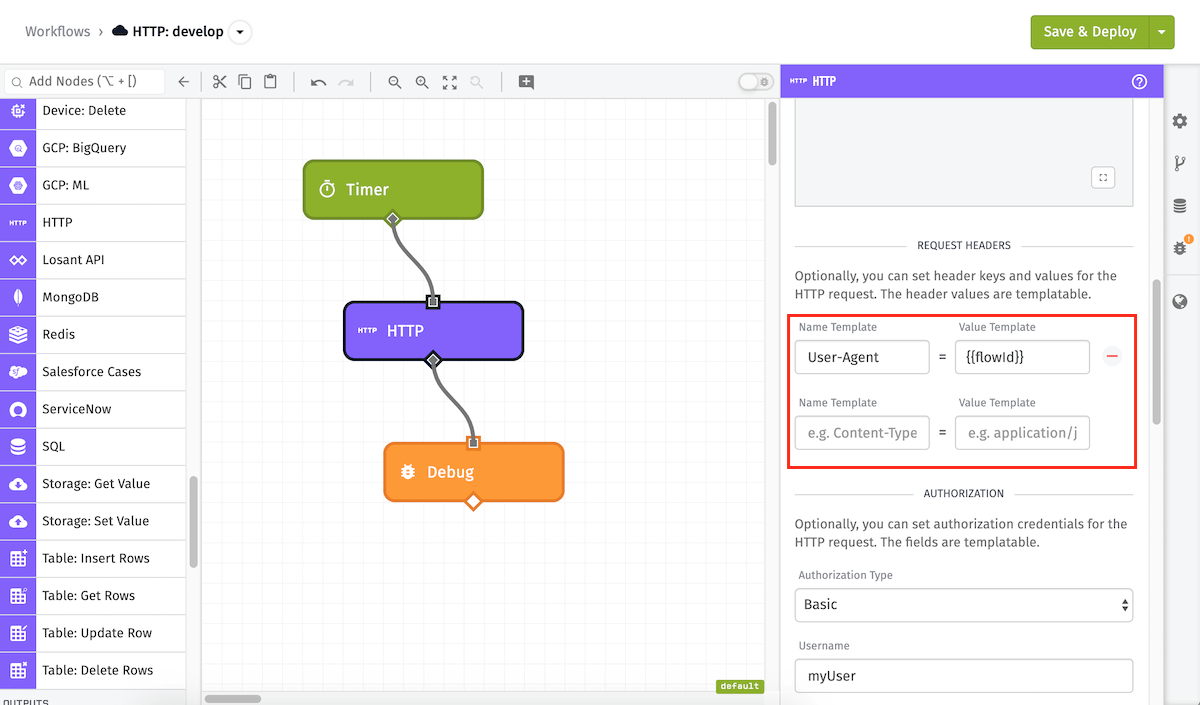

Header Configuration

The HTTP Node also has optional support for adding headers to the HTTP request. Each header is a combination of a header name and a header value. Header values can take string templates to dynamically build headers out of the current payload if needed. The above example has a single header of User-Agent whose value is the template wegnology/{{ flowId }}.

Authorization

Authorization Configuration

The HTTP Node can optionally set authorization information for requests. There are two options for authorization: Basic and Client Certificate. For Basic you can provide a username and password, and the request will be sent with a proper Basic Auth header. The screenshot above shows a basic auth configuration, with the username exampleUser and the password examplePass. NOTE for edge workflows, this feature is only available for workflows targeting edge agent version 1.2.0 or higher.

For Client Certificate, you will be asked to provide a Client Certificate Key and a Client Certificate. When those are provided, the request will be sent with the Client Certificate for the server to authenticate. NOTE for edge workflows, this feature is only available for workflows targeting edge agent version 1.5.0 or higher.

SSL Options

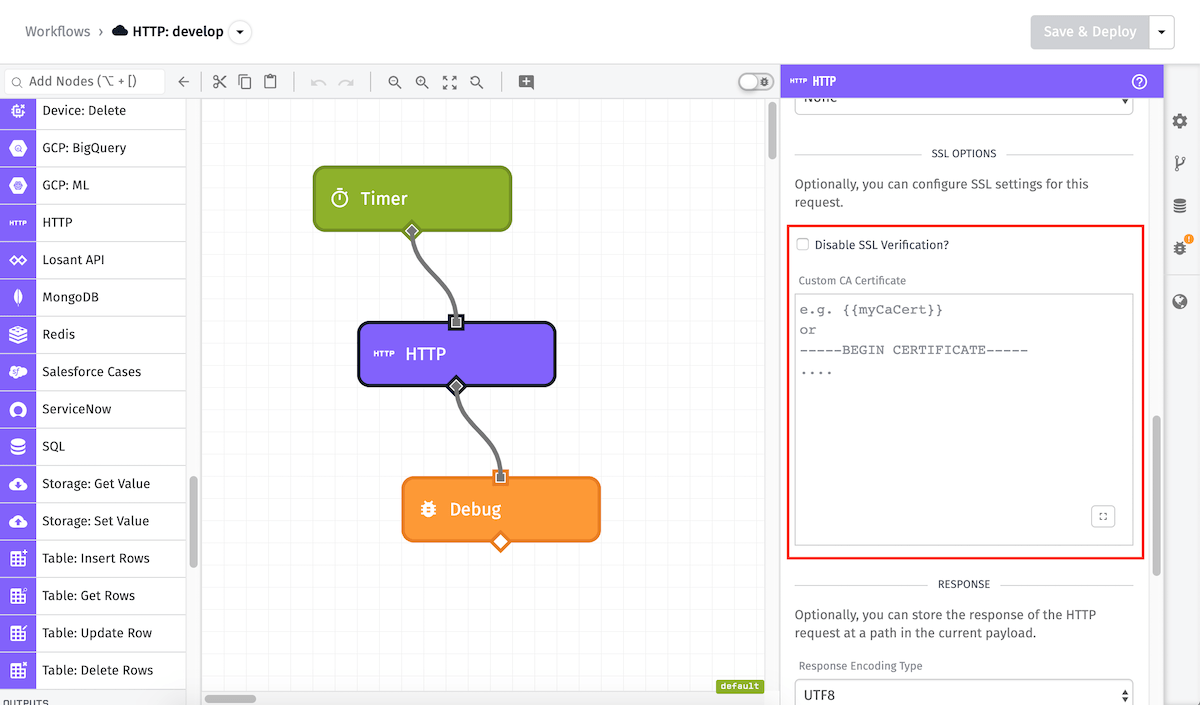

SSL Configuration

Next, you can you can decide whether to Disable SSL Verification? (useful if you are connecting to a a server with a self-signed SSL certificate). In the given example the SSL certificate will still be verified by the request and if it is invalid will return an error. However, if this box was checked it would not ensure that the SSL certificate is valid.

If you are using a self-signed, custom, or uncommon Certificate Authority, you can also optionally provide the CA certificate. This allows you to keep SSL verification enabled, even when using certificates that normally WEGnology would not be able to verify. NOTE for edge workflows, this feature is only available for workflows targeting edge agent version 1.5.0 or higher.

Response Configuration

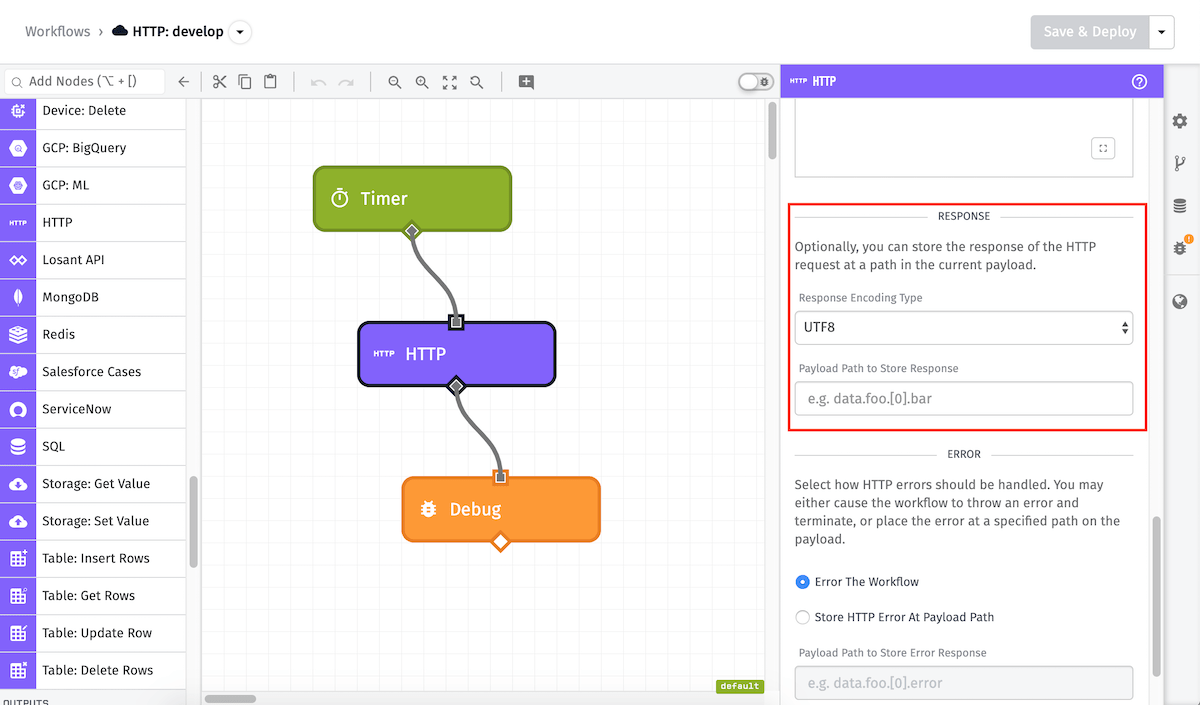

Response Configuration

The HTTP Node can optionally store the response from the request at an arbitrary payload path. If a path is defined, the body, headers, status code, and original request information are stored at the given path. Optionally, you can specify the body response encoding type. By default, the encoding type will be UTF8. For edge workflows, the body response encoding type will only be available for workflows targeting edge agent version 1.8.0 or higher. The node also attempts to parse the body as JSON - if it is parseable, the parsed object is placed on the payload instead of the raw response body string. In the example above, the response will be stored at the working.result field.

Node Example

So with the above example, given the following payload:

{
  "time": Fri Feb 19 2016 17:26:00 GMT-0500 (EST),
  "data": {},
  "applicationId": "568beedeb436ab01007be53d",
  "applicationName": "Embree"
  "triggerId": "f6094780d98111e5883a37908659487f",
  "triggerType": "timer",
  "flowId": "568dcdee86985501006360ba",
  "flowName": "HTTP NODE",
  "globals": { }
}

The node will make a GET request to http://example.datasource.com with no body, but with the header User-Agent set to wegnology/568dcdee86985501006360ba. When the request responds, the workflow will continue with the response on the payload in data.pricing, potentially looking like:

{
  "time": Fri Feb 19 2016 17:26:00 GMT-0500 (EST),
  "data": {
    "pricing": {
      "body": [
        {
          "millisUTC": "1456158300000",
          "price": "2.5"
        },
        {
          "millisUTC": "1456158000000",
          "price": "2.5"
        },
        ...
      ],
      "headers": {
        "strict-transport-security": "max-age=15768000",
        "content-type": "text/html; charset=UTF-8",
        "connection": "close",
        "transfer-encoding": "chunked"
      },
      "statusCode": 200,
      "request": {
        "headers": {
          "User-Agent": "wegnology/5afb015e01206900050e7579"
        },
        "strictSSL": true,
        "uri": "http://rrtp.comed.com/api?type=5minutefeed",
        "method": "GET"
      }
    }
  },
  "applicationId": "568beedeb436ab01007be53d",
  "applicationName": "Embree",
  "triggerId": "f6094780d98111e5883a37908659487f",
  "triggerType": "timer",
  "flowId": "568dcdee86985501006360ba",
  "flowName": "HTTP NODE",
  "globals": { }
}

Node Errors

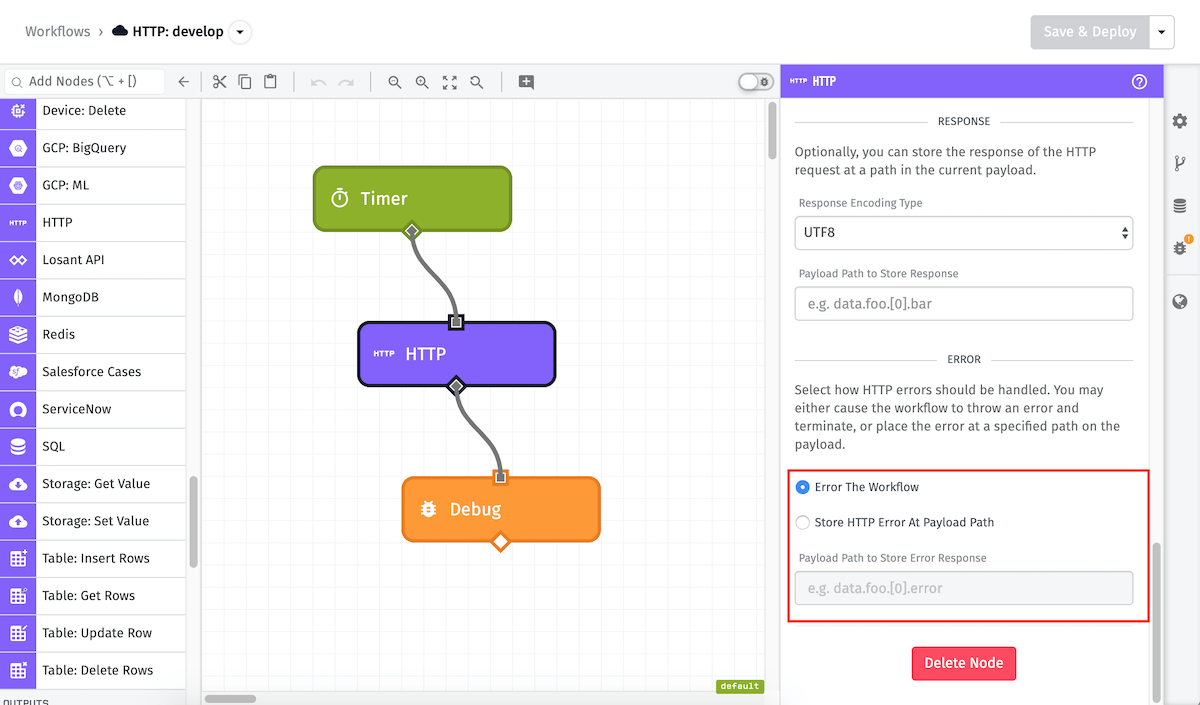

Error Configuration

Any HTTP request that returns with an actual response (even if it is a 4XX or 5XX status code) will be treated as a response, and so will be stored at the given response path. However, there are many reasons why the HTTP node might error without a response, such as timeouts, unreachable servers, DNS resolution failures, and the like. In those cases, there are two possible options - you can either error the workflow (which means the workflow will stop running at this node), or you can store the error at a path on the payload. If you choose to store the error at a path on the payload, an object will be placed at that path with the original request information as well as the particular error that occurred. NOTE for edge workflows, this feature is only available for workflows targeting edge agent version 1.1.1 or higher.

An error response would be placed on the payload like so:

{
  "error": {
    "message": "Invalid URL: api.app.wnology.io/devices",
    "name": "ValidationError"
  },
  "request": {
    "timeout": 30000,
    "headers": {},
    "strictSSL": true,
    "uri": "api.app.wnology.io/devices",
    "method": "GET"
  }
}
