SNMP: Get Subtree Node

The SNMP: Get Subtree Node allows you to read values from multiple OIDs on your SNMP device. This node is available in edge workflows.

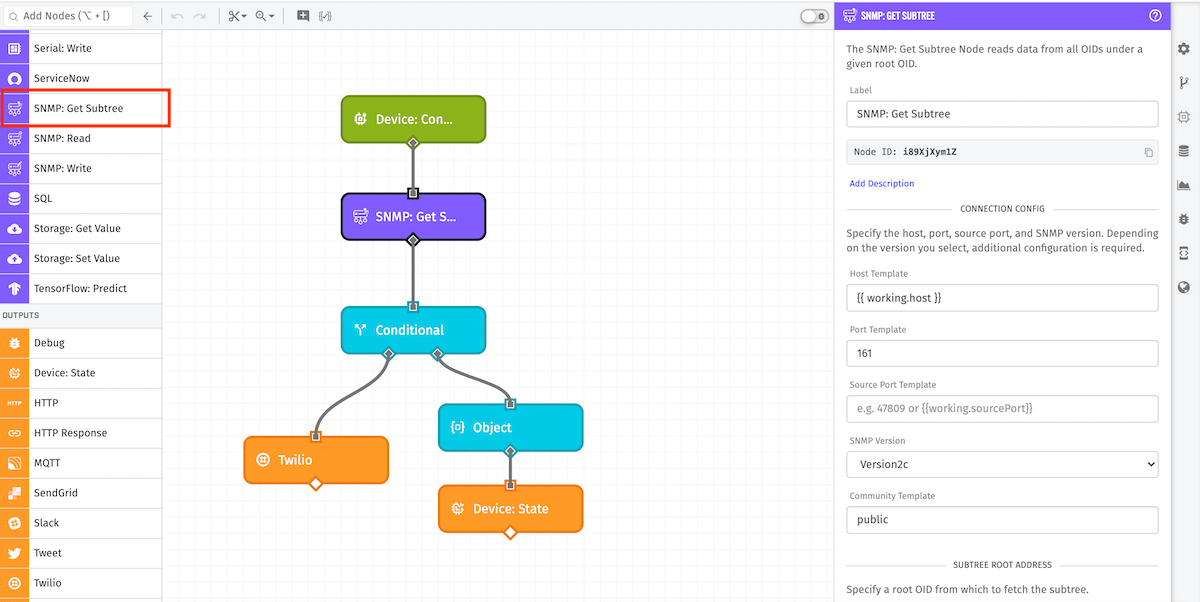

SNMP: Get Subtree Node Configuration

Node Properties​

There are three categories to the configuration for the SNMP: Get Subtree Node: the connection, the subtree root address, and the result.

Connection Configuration​

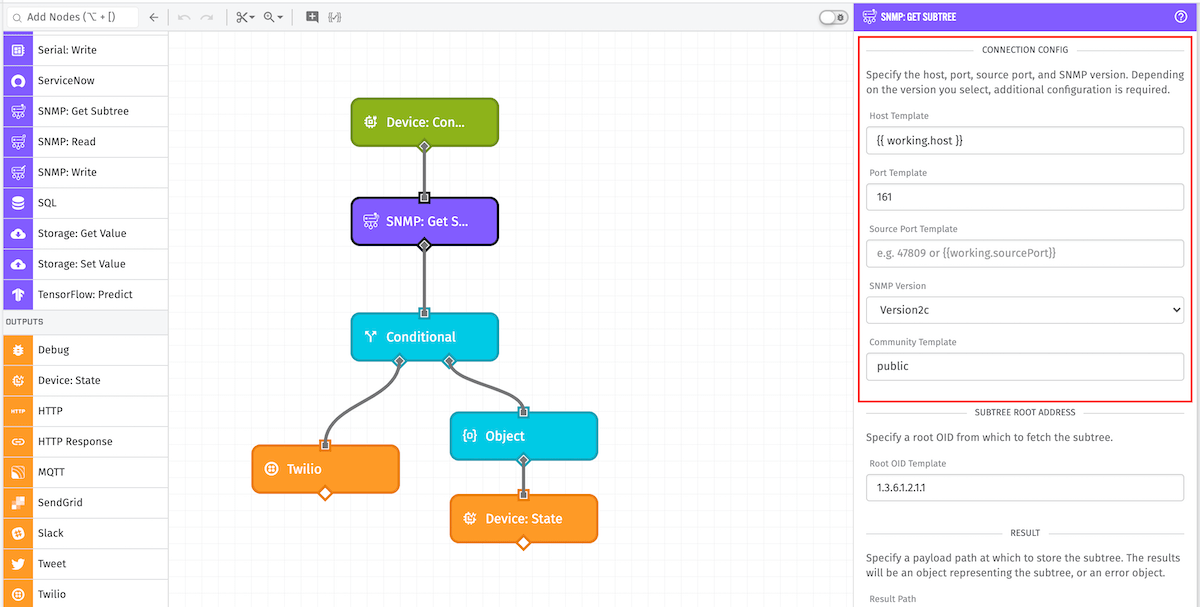

SNMP: Get Subtree Session Configuration

First, configure the information to establish a connection to the device.

  • Host Template: (Required) A string template for the destination address. This can be either an IPv4 or IPv6 address, or a hostname that resolves to an address.
  • Port Template: (Optional) A string template or integer for the UDP port at the target address. Default is port 161.
  • Source Port Template: (Optional) A string template or integer for the UDP port from which the message should be sent on the edge device. If not provided, a random port is selected at runtime.
  • SNMP Version: (Required) The version of SNMP with which to establish a connection. Options are Version1, Version2c, or Version3. Defaults to Version2c.

Depending on the version selected, additional input is required.

Version1 and Version2c Configuration​

  • Community Template: (Required) A string template for the community credential delivered with the request. Defaults to public.

Version3 Configuration​

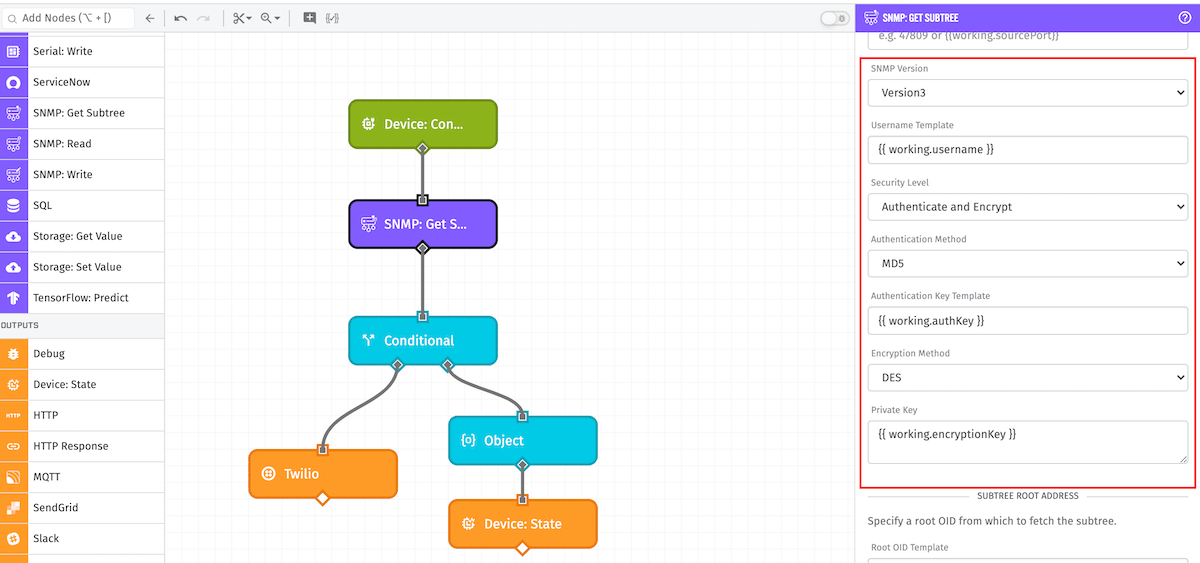

SNMP: Get Subtree Version 3 Configuration

  • Username Template: (Required) A string template for the username.
  • Security Level: (Required) The amount of security to use when establishing the SNMP connection. Options are No Authentication or Encryption, Authenticate, No Encryption, and Authenticate and Encrypt.
  • Authentication Method: The protocol to use for authentication. Required if the selected security level requires authentication. Options are SHA or MD5. Defaults to SHA.
  • Authentication Key: A string template for the authentication key. Required if the selected security level requires authentication.
  • Encryption Method: The method to use to encrypt the requested data. Options are DES or AES. Defaults to DES. Required if the selected security level requires encryption.
  • Private Key: A string template for the key to use when encrypting the requested data. Required if the selected security level requires encryption.

Subtree Root Address​

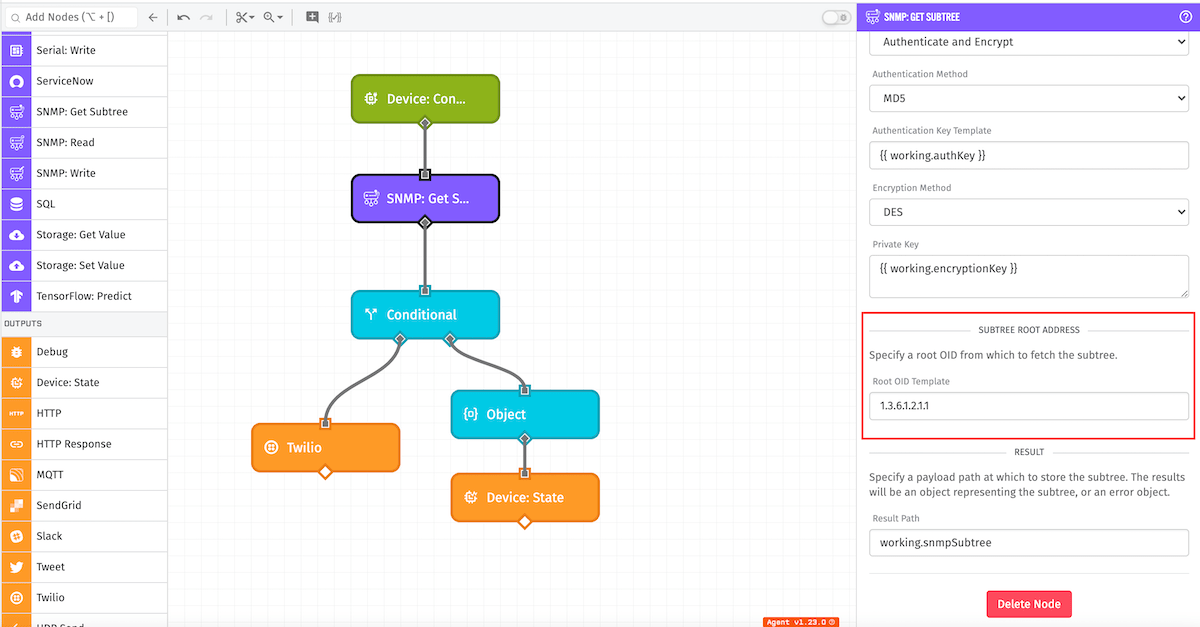

SNMP: Get Subtree Root OID Configuration

Next, indicate the Root OID under which to search. The Subtree Root Address is a templatable field representing the prefix for all OIDs to be returned. This should be a valid OID template of integers separated by periods.

Result​

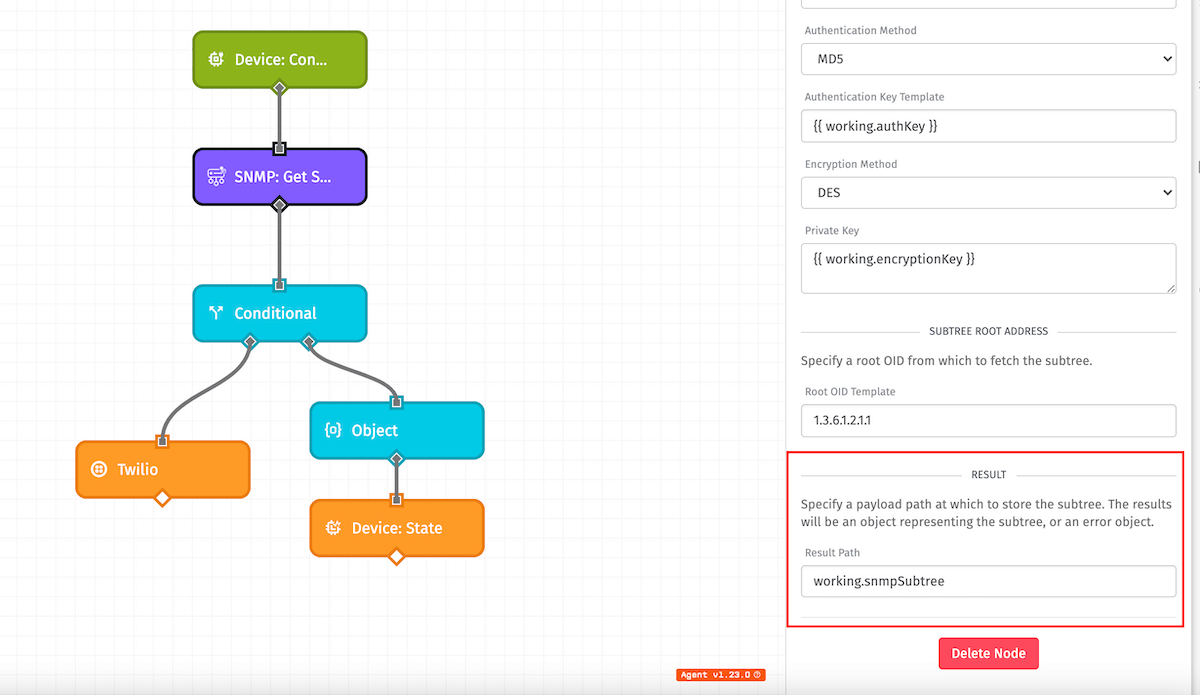

SNMP: Get Subtree Result

The result path defines where on the payload to store the result of the subtree read. If values are successfully read, this represents an object with key-value pairs representing each OID and associated value. If there are any errors, the result includes an object with details about the error.

Node Example​

The following is an example of a successful subtree read for root OID 1.3.6.1.2.1.1:

{
  "1.3.6.1.2.1.1.1.0": "System Value",
  "1.3.6.1.2.1.1.4.0": "System Name",
  "1.3.6.1.2.1.1.6.0": "System Location: 3 and 4",
  "1.3.6.1.2.1.1.7.0": 194
}

Node Errors​

The following is an example of a failed subtree read due to timeout:

{
  "error": {
    "message": "Request timed out",
    "type": "SnmpGetSubtreeError"
  }
}
