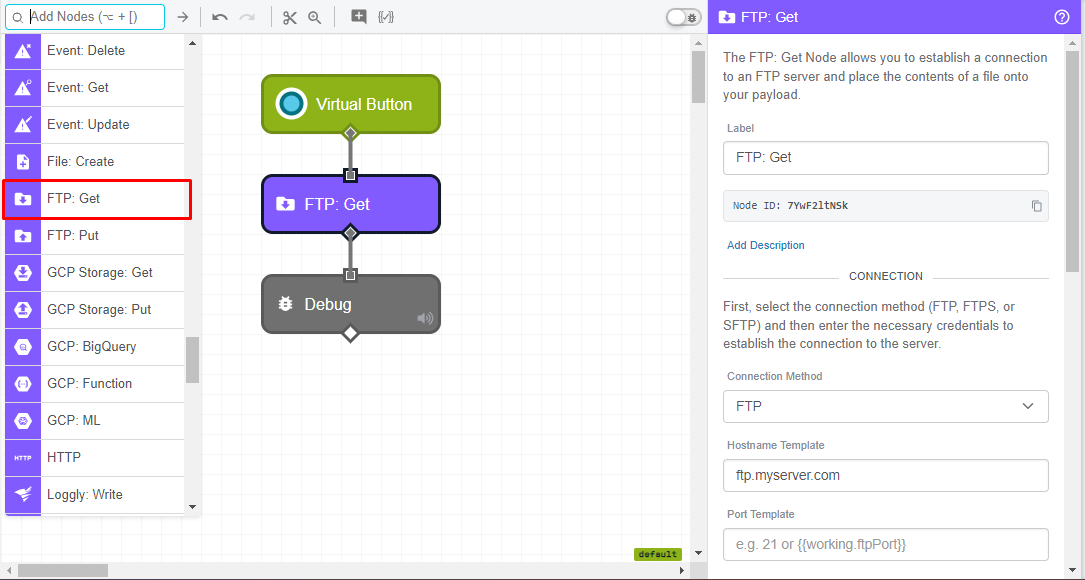

FTP: Get Node

The FTP: Get Node allows a workflow to retrieve a file from an FTP or SFTP server.

Node Properties

There are three main configuration sections for the FTP: Get Node …

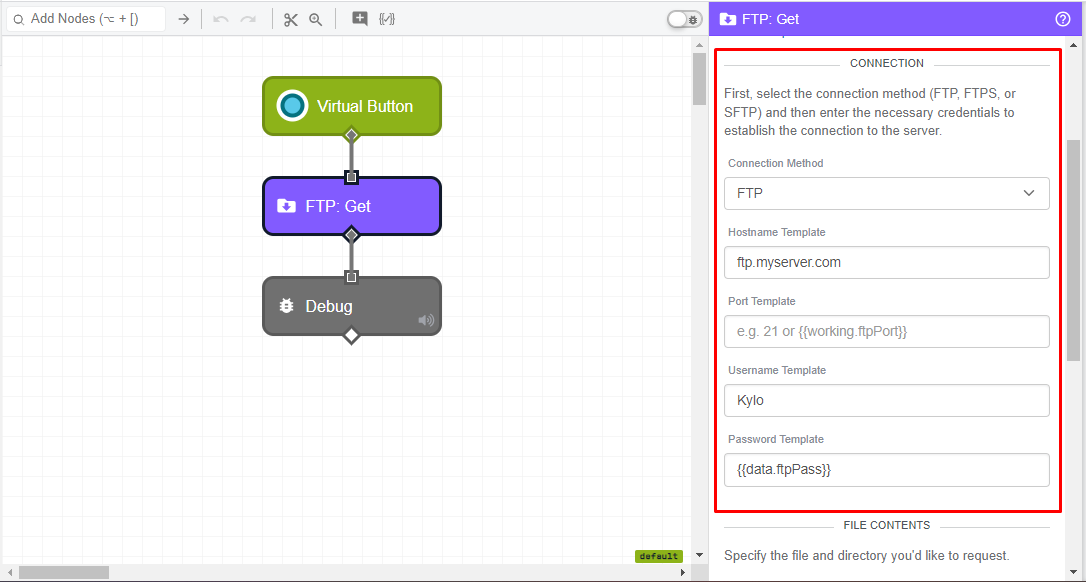

Connection Configuration

First, enter the required information to establish the connection to the server.

• Connection Method: SFTP, FTPS, or FTP.
• Hostname: (Required) The address of the server.
• Port: Defaults to 22 for SFTP and 21 for FTPS and FTP.

Depending on the chosen Connection Method, there are additional values to provide.

SFTP

• Username: (Required) The username for establishing the SFTP connection.

• Authentication Method: (Required) Choose one of the options and then fill in the provided input …

  • Password: The password associated with the username.
  • Private Key: A private key for authenticating the user against the server.

FTPS

• Username: The username for establishing the connection. This is required only if a password is provided, though most servers require this value.
• Password: The password for the provided username. This is optional, but is required by most servers.

In addition, FTPS connections take the following optional SSL properties to establish a secure connection:

• Client Certificate Key: A private key associated with the client certificate. Required if Client Certificate is provided.
• Client Certificate: A TLS/SSL Certificate which verifies the identity of the client. Required if Client Certificate Key is provided.
• Disable SSL Verification: If checked, the server certificate will not be checked against the supplied CA Certificate.
• Custom CA Certificate: A certificate to compare against the server. Necessary only if the server is using a self-signed certificate. The input is disabled if the server is Disable SSL Verification is checked.

FTP

FTP connections are similar to FTPS connections in that most require a Username and Password; however, FTP connections are not established over secure channels and thus do not require SSL configuration.

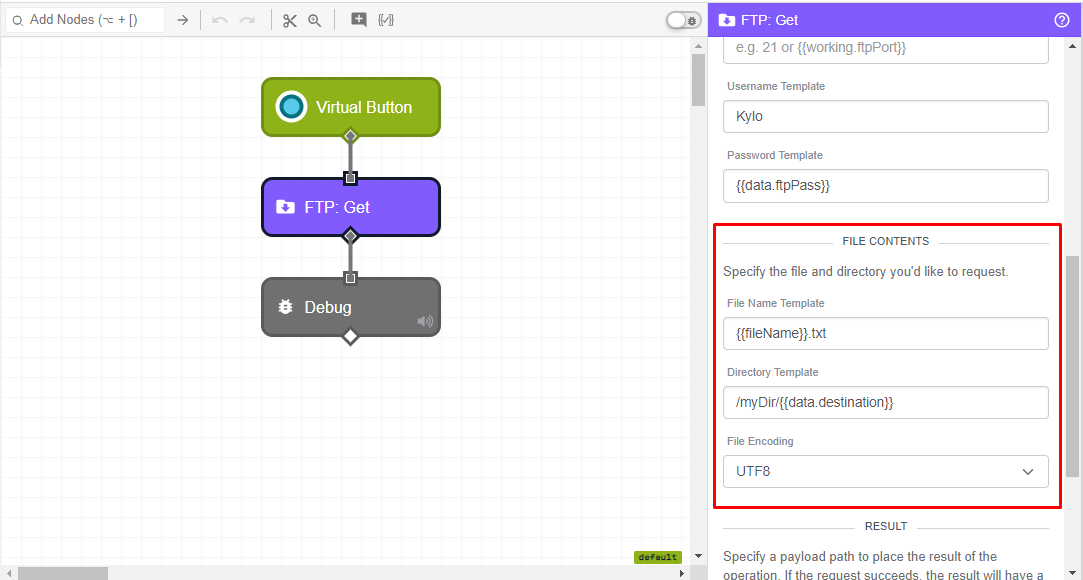

File Configuration

Next is to configure the fields required to retrieve a file. All applicable fields are templatable:

• File Name: (Required) The basename of the file to retrieve.
• Directory Name: (Required) The full path to a directory where the file is located.
• File Encoding: (Required) The encoding of the file that you’re retrieving. Defaults to UTF-8.

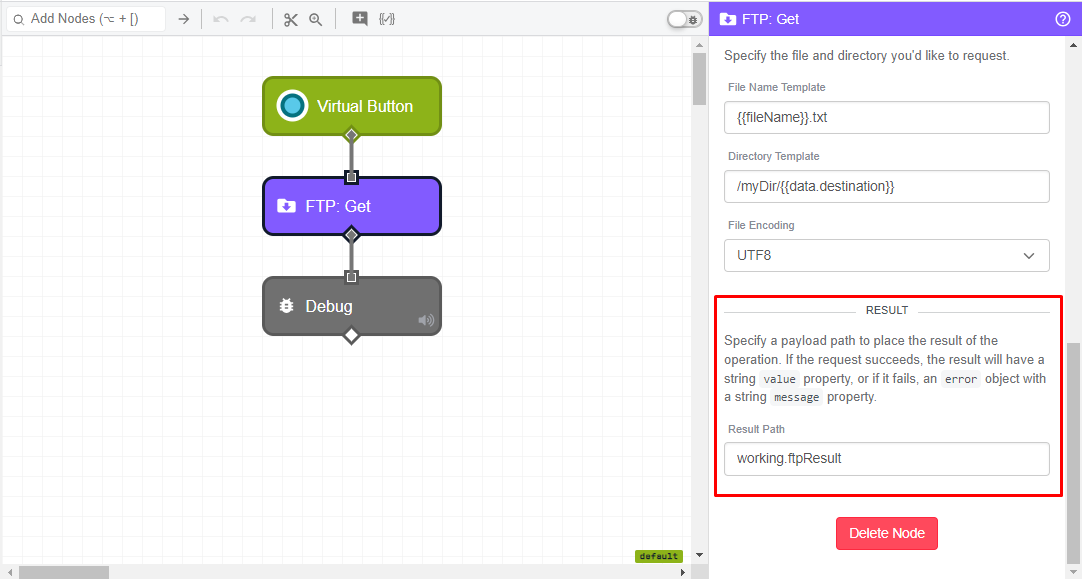

Result

• Result Path: (Required) The result of the operation will be placed in an object at the specified payload path.

Node Example

When the operation successfully executes, the result will contain a value key with the contents of the file retrieved from the server.

{
"value":"This is my file's content"
}

Node Errors

In the case of an error, the resulting object will contain an error key instead of the normal value key.

{
  "error": {
    "message": "530 Non-anonymous sessions must use encryption"
  }
}

Related Nodes

• FTP: Put Node
