Job: Complete Trigger

The Job: Complete Trigger fires a workflow whenever a Resource Job completes all iterations or is canceled during execution.

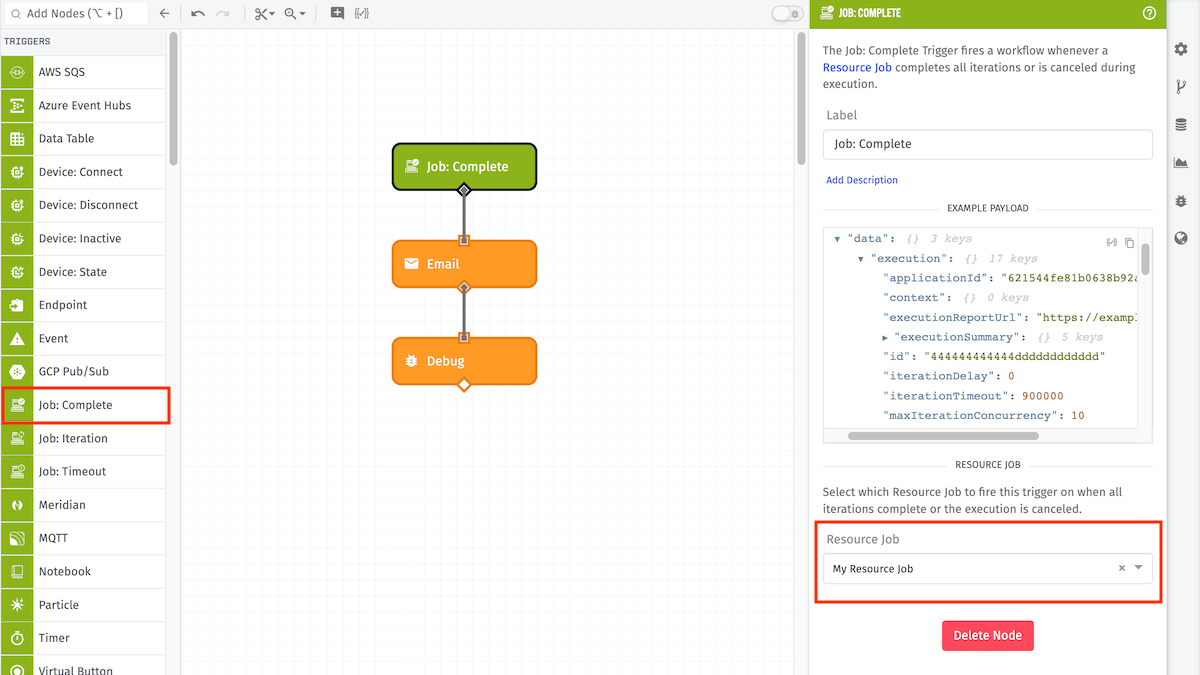

Job: Complete Trigger

Node Properties

The Job: Complete Trigger has one piece of configuration: the Resource Job, which will fire this node when all iterations complete or the execution is canceled.

Payload

The payload will include the triggering event in the data field. In the general case, a Job: Complete workflow payload will look like the following:

{
  "applicationId": "555555555555eeeeeeeeeeee",
  "applicationName": "My Great Application",
  "data": {
    "accumulator": "{\"example\":900001}",
    "execution": {
      "applicationId": "555555555555eeeeeeeeeeee",
      "context": {},
      "executionReportUrl": "https://example.com/yourReport.csv",
      "executionSummary": {
        "failed": 5,
        "inProgress": 0,
        "remaining": 0,
        "succeeded": 23,
        "timedOut": 4
      },
      "id": "444444444444dddddddddddd",
      "iterationDelay": 0,
      "iterationTimeout": 900000,
      "maxIterationConcurrency": 10,
      "maxIterationRetries": 1,
      "query": {
        "$or": []
      },
      "resourceJobExecutionId": "444444444444dddddddddddd",
      "resourceJobId": "6377e89a6bf4da30eb564c66",
      "resourceType": "device",
      "retryDelay": 50,
      "retryOnFailure": true,
      "retryOnTimeout": true,
      "runCompletedAt": "2022-11-18T21:59:36.163Z",
      "runStartedAt": "2022-11-17T21:59:36.163Z",
      "sourceId": "555555555555eeeeeeeeeeee",
      "sourceType": "user",
      "status": "completed"
    },
    "resourceJob": {
      "applicationId": "555555555555eeeeeeeeeeee",
      "createdById": "6168bc08b7326100076cbf4f",
      "createdByType": "user",
      "creationDate": "2022-11-18T20:18:34.676Z",
      "defaultContext": "{}",
      "description": "",
      "id": "6377e89a6bf4da30eb564c66",
      "iterationDelay": 0,
      "iterationTimeout": 900000,
      "lastExecutionRequested": "2022-11-15T17:12:15.600Z",
      "lastUpdated": "2022-11-18T20:18:34.676Z",
      "lastUpdatedById": "6168bc08b7326100076cbf4f",
      "lastUpdatedByType": "user",
      "maxIterationConcurrency": 10,
      "maxIterationRetries": 1,
      "name": "My Resource Job",
      "queryJson": "{\"$or\":[]}",
      "resourceJobId": "6377e89a6bf4da30eb564c66",
      "resourceType": "device",
      "retryDelay": 50,
      "retryOnFailure": true,
      "retryOnTimeout": true
    },
    "success": true
  },
  "flowId": "333333333333cccccccccccc",
  "flowName": "My Great Workflow",
  "flowVersion": "myFlowVersion",
  "globals": {
    "aJsonGlobal": {
      "key": "value"
    },
    "aNumberGlobal": 42,
    "aStringGlobal": "My value"
  },
  "relayId": "<ID of the job>",
  "relayType": "resourceJob",
  "time": Fri Feb 19 2016 17:26:00 GMT-0500 (EST),
  "triggerId": "<ID of the job>",
  "triggerType": "resourceJobComplete"
}
