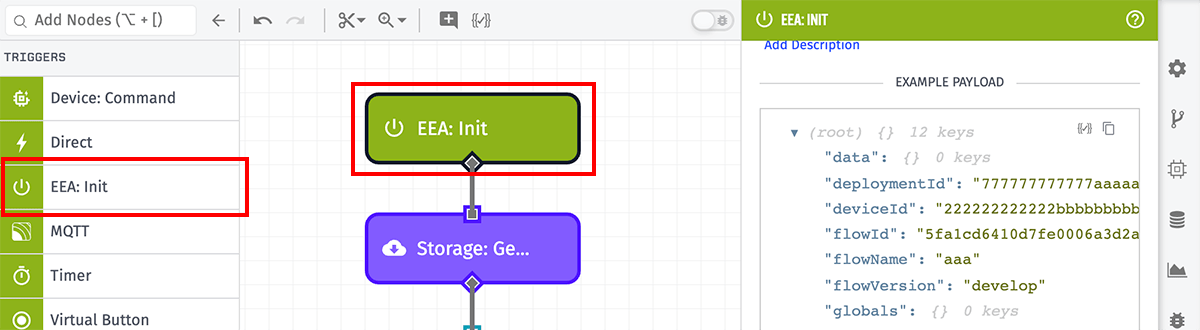

EEA: Init Trigger

The EEA: Init Trigger will trigger a workflow whenever the eea_init function is called within the Embedded Edge Agent.

Node Properties

This node does not require any configuration. It will automatically fire whenever eea_init function is called within the Embedded Edge Agent is called on your Embedded Device.

Payload

The payload will have an empty object on the standard data field, since there is no useful data to report other than the fact that eea_init function is called within the Embedded Edge Agent was called. In the general case, an EEA: Init workflow payload will look like the following:

{
  "data": {},
  "deploymentId": "666666666666ffffffffffff",
  "deviceId": "222222222222bbbbbbbbbbbb",
  "flowId": "333333333333cccccccccccc",
  "flowName": "My Great Workflow",
  "flowVersion": "myFlowVersion",
  "globals": {
    "aJsonGlobal": {
      "key": "value"
    },
    "aNumberGlobal": 42,
    "aStringGlobal": "My value"
  },
  "isConnectedToWnology": true,
  "time": 1455902760000,
  "triggerId": "onBoot",
  "triggerType": "onBoot"
}

Resources

• EEA Overview
• EEA Walkthrough
• EEA API
